How to Choose the Right Dump Truck Body Size
This quick guide will help you learn how to calculate yardage and find the best fit for your hauling needs. Be sure to check out our quick-guide charts at the bottom of the page!

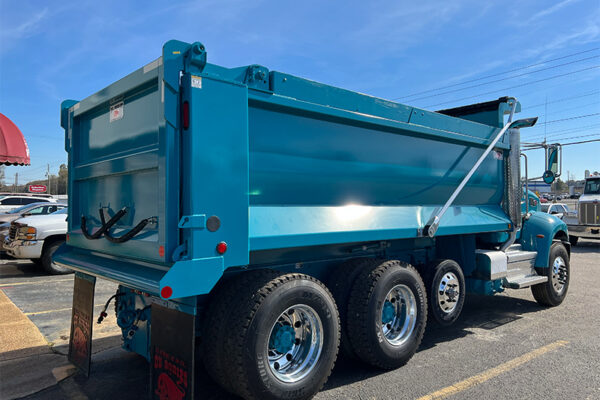

Stampede Overview
Bone crushing loads are no match for our Stampede. The smooth, seamless, full-length, radius sides prevent damage and help materials unload cleanly. For extreme duty applications involving large rock, construction riprap, and demolition materials or smaller. No vertical weld seams to crack or hang-up loads. We set the bar high and delivered with this true elliptical dump body design.
For information on how to choose the right size dump body, click here.
Materials
- Commercial grade 1/4″ AR450 Hardox steel (front gate, sides, hoist well, floor, tailgate)
- Heavy duty, steel removable tailgate hinge pin
Specifications
- Elliptical dump body design
- Lengths of 14′-21′ in 1′ increments
- Width (Inner Dimensions) 87″
- Side Heights 48″, 54″, 62″, and 66″
- Capacities of 13.6 to 28.9 cubic yards
- Diamond mounted 4″ x 4″ x 1/4″ square tubing top rail
- Cross-memberless steel, 8″ I-Beam longsill
Features & Options
- In-cab controls
- Air shift PTO controls
- Back up alarm
- Body up indicator
- Body prop
- Recessed and rubber grommeted LED lighting to meet FMVSS 108
- Anti-sail rear rubber mud flaps
Related Content
Stockyard
Carbon steel dump body for medium duty chassis, available in lengths of 9′-12′ and 3 – 9 yd3.

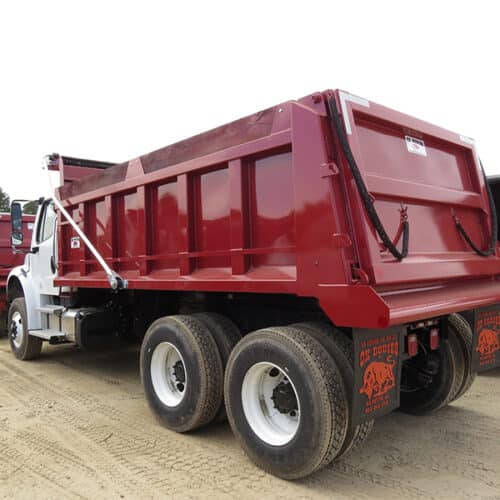

Maverick
Carbon steel body ideal for aggregates and asphalt. Available in lengths from 10′ – 22′ and capacities of 3.9 – 34.6 yd3.
Chisholm
Square-bottom, AR steel dump body available in lengths from 14′ – 21′ and capacities of 12.2 to 30.3 yd3.
